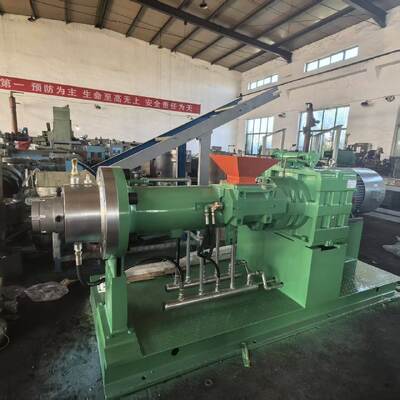

Φ6-inch Hot Feed Extruder With Inner Butyl Inner Tube Production Line

Name: Φ6-inch Hot Feed Extruder With Inner Butyl Inner Tube Production Line
Brand: Qingdao Beishun Environmental Protection Technology Co.,Ltd
SKU: XJ-150
Price: 252,500.00 USD
Availability: InStock

브랜드 이름:	Beishun
모델 번호:	XJ-150
MOQ:	1세트
가격:	협상 가능
공급 능력:	20세트/월

자세한 정보

제품 설명

자세한 정보

원래 장소:

칭다오

인증:

나사 경도:

900-950HV

전압:

380V

나사 채널 구조:

깊은 나사

SH 코드:

84778000

쇼룸 위치:

중국

제품명:

고무 핫 피드 압출기 기계

포트:

칭다오

모터 속도:

1000r/분

플런저 직경:

300mm

기계 시험 보고서:

제공

무게:

4.5톤

나사 디자인:

단일 나사

이점:

긴 서비스 수명

핵심 구성 요소:

엔진, 베어링, 모터

나사산 종류:

듀얼 헤드 동일

포장 세부 사항:

40GP

강조하다:

Φ6-inch Rubber Extruder Machine

38CrMoala Nitrided Steel Hot Feed Extruder

Dual-Arm Conjugate Feeder Butyl Rubber Extruder

제품 설명

Φ6-inch Hot Feed Extruder for Butyl Rubber Inner Tube Production Line

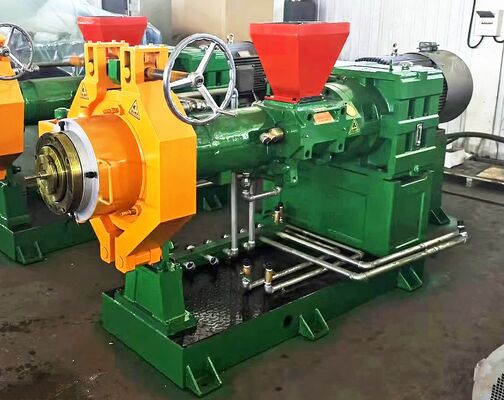

Hot-Feed Extruder Structure

The hot-feed extruder consists of a body, head, reducer, and motor. The screw and bushing are manufactured from high-quality 38CrMoala nitrided steel, providing exceptional wear resistance. The screw features double threads with equal depth but unequal, converging pitch. The body is constructed from cast steel and utilizes 9039 series main bearings, significantly enhancing load-bearing capacity and service life.

Technical Specifications

Type	Screw Diameter (mm)	L/D Ratio	Screw Speed (r/min)	Production Capacity (kg/h)
XJ-90	Φ90	1:5.38	7.5-75	280
XJ(L)-115	Φ115	1:4.8	20/30/40/60	420
XJ-150	Φ150	1:4.6	25-75	920
XJL-150	Φ150	1:5.2	40	520

Butyl Rubber Extruder Design Features

Butyl rubber extruders are specifically engineered for the unique characteristics of butyl rubber, which is both soft and highly viscous. Traditional forced feeders often cause erratic rubber movement that can damage rotating bearings. Our solution is a dual-arm conjugate feeder rubber extruder that accommodates block-shaped rubber feeding. After entering the extruder barrel, the butyl rubber is sheared and compressed by the screw before extrusion at the die.

The screw design accounts for the soft nature of butyl rubber with a specific thread compression ratio. Butyl rubber extruders typically employ a pin-type rubber barrel to increase extrusion pressure. The screw is divided into three functional sections: conveying, compression, and metering. Temperature control is precisely managed through three temperature sections in the barrel, with water jackets on both barrel and screw ensuring accurate and uniform rubber temperature during operation.

Production Line Applications

This equipment produces various butyl rubber products including butyl rubber tape, foamed butyl rubber tape, automotive shock absorber pads, automotive windshield butyl rubber tape, high-speed rail glass butyl rubber sealing strips, architectural glass curtain wall butyl rubber strips, aluminum foil butyl rubber water-resistant rolls, non-woven butyl rubber tape, and chewing gum.

Performance Characteristics

AC motor with frequency conversion speed regulation provides wide speed range and adaptability for different specification butyl rubber products
Hard-tooth surface rubber extruder reducer ensures low noise, high transmission torque, smooth operation, and convenient maintenance
Dual-channel automatic temperature controller minimizes temperature fluctuations and allows ideal temperature selection based on processing techniques

Dual-Station Rewinder Operation

The butyl tape dual-station rewinder consists of power reduction system, tension winding system, and meter counting mechanism. Easy to operate and control, it features meter counter signal transmission with independent control for each station. Workers can change reels without stopping the machine, significantly increasing production output.

Designed and manufactured by Hebei Shuangda Rubber & Plastic Machinery Co., Ltd., this rewinder reduces bending, twisting, and deformation during butyl tape production, increasing finished product qualification rates. The equipment offers stable performance, high efficiency, labor savings, and superior output.

Qingdao Beishun Environmental Protection Technology Co.,Ltd

A modern enterprise integrating R&D, production, and sales of complete sets of rubber, silicone, and plastic extrusion machinery. Main products include rubber extruders, rubber hose extruder production lines, three-component sealing strip extruder production lines, silicone sealing strip production lines, plastic sealing strip production lines, plastic profile production lines, plastic pipe production lines, elastomer extruders, and production equipment for engineering seals, automotive seals, wires and cables, air conditioning hoses, braided hoses, automotive hoses, and waterstops.

When selecting a butyl rubber inner tube hot-feed extruder, it is recommended to prioritize models with Φ150 or Φ120 gauges, equipped with a forced feeding device and a multi-stage temperature control system. During production, strictly controlling the hot refining temperature (low temperature) and the filtering temperature (below 135℃) is crucial for ensuring the inner tube's airtightness and yield. If the budget allows, a pin-barrel cold-feed extruder equipped with an automated production line can be considered as an upgrade to the traditional hot-feed process.
