고무 가황 프레스 기계
Created with Pixso.

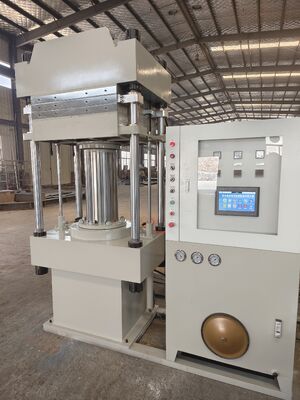

600×600mm Hot Plate 100ton Clamping Force Rubber Vulcanizing Press Machine With PLC Control System For Making Rubber Blocks

600×600mm Hot Plate 100ton Clamping Force Rubber Vulcanizing Press Machine With PLC Control System For Making Rubber Blocks

브랜드 이름: Beishun
모델 번호: XLB-600×600/1.0MN
MOQ: 1세트
가격: 협상 가능
지불 조건: 신용장, 티/티
공급 능력: 50 세트/월
자세한 정보
원래 장소:
칭다오
인증:
ISO9001/CE
프레임머티리얼:
고강도 강철
전원 공급 장치:
380V/50Hz 또는 주문형입니다
난방 시스템:
기름 또는 증기 또는 전기
피스톤 스트로크:
240mm
제어 시스템:
PLC
난방 모드:
전기 같은
주형 개방형:
2RT/3RT/4RT
성격:
푸시풀 금형 사용
HS코드:
8477.8000
작용 층:
맞춤형
작업 레이어 아니요:
1
최대 압력:
10-50MPa
포장:
FCL / LCL
모터 파워:
7.5kw
작업 레이어:
맞춤형
포장 세부 사항:
나무 상자
제품 설명

For the production of rubber blocks, the flat vulcanizing machine with a 600*600mm hot plate size, the mainstream models and core parameters are as follows (suitable for small and medium-sized rubber blocks, buffer blocks, and shock absorbers):

I. Standard Model and Tonnage (Commonly Used)

  • XLB-D 600*600 / 1.00MN (100 tons)
    • Molding Force: 100 tons (Suitable for most rubber blocks, mold cavity pressure is approximately 2.8 MPa)
    • Hot Plate Dimensions: 600 * 600 mm
    • Number of Hot Plate Layers: 2 layers (three plates with two layers) or 4 layers
    • Plunger Stroke: 300–400 mm
    • Hot Plate Spacing: 125–200 mm (Adjustable)
    • Heating: Electric heating, power per layer is approximately 3.0–4.5 kW
    • Temperature: Room temperature to 200–250℃
    • Temperature Control Accuracy: ±1~2℃
    • Structure: Four-column type (Most commonly used)
  • XLB-D 600*600 / 1.60MN–2.00MN (160–200 tons)
    • Suitable for large-sized, high-density, thick rubber blocks, or multi-cavity high-capacity molds
    • Greater clamping force, denser pressing, avoiding glue shortage and bubbles

II. Recommended Configuration for Rubber Blocks

  • Number of Layers: Prefer 2 layers (standard) or 4 layers (efficient)
    • 4-layer machine: Can place 4 sets of molds at once, production capacity doubles
  • Pressure:
    • Common rubber blocks (NR/SBR/EPDM): 100 tons is sufficient
    • High hardness, thick products, fluorine rubber blocks: Recommended 160–200 tons
  • Heating Method: Electric heating (Precise temperature control, simple installation, low maintenance)
  • Control:
    • Semi-automatic: Manual + automatic timing, exhaust, holding pressure, mold opening
    • Fully automatic (recommended): PLC + touch screen, automatic cycle, formula storage
  • Additional Functions:
    • Automatic exhaust (3–5 times): Reduces rubber block bubbles
    • Automatic ejection: Convenient for taking parts, improves efficiency
    • Fast and Slow Hydraulic Cylinders: Fast mold closure, slow pressure increase, protects molds

III. How Large Rubber Blocks Can Be Made with 600*600?

  • Single rubber block: ≤500*500mm (leave 50mm on each side for mold placement / exhaust)
  • Multi-cavity in one mold: For example, 100*100mm block → One mold can hold 36 blocks (6*6)
  • Height: ≤120–150mm (based on layer spacing of 125–200mm)

IV. Price Reference (2026)

  • 100 tons 600*600 Semi-automatic: $5,000 - $8,000
  • 100 tons 600*600 Fully automatic (PLC): $6,000 - $9,000
  • 160–200 tons 600*600: $9 - $150,000 (depending on configuration)

V. Selection Points (For Rubber Blocks)

  • According to mold size: Hot plate is 50mm larger than each side of the mold +
  • According to product thickness: Layer spacing > product thickness by 30% +
  • According to hardness / material: High hardness, thick wall → Tonnage is increased by 1.2–1.5 times
