80-ton Column-type Precision PLC Fully Automatic Flat Vulcanizing Machine

브랜드 이름:	Beishun
모델 번호:	XLB-500×500/0.8MN
MOQ:	1세트
가격:	협상 가능
지불 조건:	신용장, 티/티
공급 능력:	30세트/40일

자세한 정보

제품 설명

자세한 정보

원래 장소:

칭다오

인증:

ISO/CE

난방:

전기 / 석유 / 증기

구조 방식:

수평의

실린더 스트로크:

500mm

제어:

PLC 자동

경화 시간:

0-999s

머신 유형:

유압식/기계식 가황 프레스

이명:

평면 화산 인쇄기

온도 범위:

0-400 ℃

작동 온도:

최대 300°C

금형 호환성:

맞춤형 금형 지원

난방 모드:

전기난방

주요 판매 포인트:

상등품과 가격

포장 세부 사항:

40GP/OT

강조하다:

80-ton PLC vulcanizing machine

column-type flat vulcanizing press

automatic rubber vulcanizing machine

제품 설명

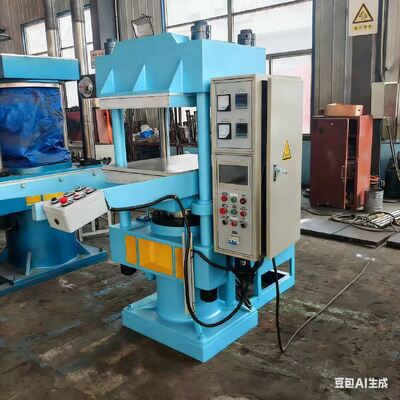

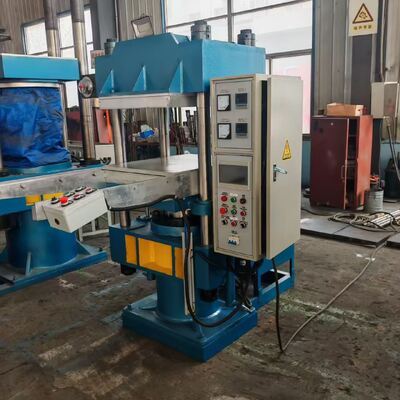

80-ton Column-type Precision PLC Fully Automatic Flat Vulcanizing Machine

Applications & Capabilities

This advanced 80-ton column-type precision PLC fully automatic flat vulcanizing machine is engineered for high-performance rubber hydraulic molding across diverse industrial applications:

Silicone Rubber Products: O-rings, mobile phone keyboards, computer keyboards, remote control buttons, pressure cooker and rice cooker sealing gaskets, household appliance components, food and medical device parts, nipples, medical supplies, handicrafts, toy seals, conductive rubber, automotive rubber parts, industrial rubber components, medical silicone products, sports equipment, various utensils, multi-layer molded products, plywood, epoxy resin boards, carbon fiber boards, PI films, and various composite materials and rubber-plastic products for hot pressing, shaping, manufacturing, and processing.
Flat Tapes and Sheets: Precision molding of flat tapes, sheets, and polymer flat products.
Seals and O-rings: Production of various rubber molded and non-molded products including seals, O-rings, oil seals, gaskets, thermosetting plastics, foams, resins, building materials, and diverse rubber-plastic products.

These machines are essential equipment in the rubber products industry, delivering precision, reliability, and automation for demanding manufacturing environments.

Technical Specifications

Model	XLB-D350X350	XLB-D400X400	XLB-D600X600	XLB-D750X850	XLB-D900X900
Total Pressure	0.25mn	0.50mn	1.00mn	1.60mn	2.50mn
Platen Size	350x350mm	400x400mm	600x600mm	750x850mm	900x900mm
Daylight	125mm	125mm	125mm	125mm	125mm
Working Layer	2	2	2	2	2
Piston Stroke	250mm	250mm	250mm	250mm	250mm
Heating Method	Electric	Electric	Electric	Electric	Electric
Platen Unit Area Pressure	20kg/cm²	31kg/cm²	28kg/cm²	31kg/cm²	31kg/cm²
